30' x 40' Frame tents for sale from America's leading manufacturer for the frame tent rental and party tent rental industry
30'x40' Frame tents by Ohenry are made for the abuse of the party tent rental industry. Ohenry has Frame tents for sale which are built with top quality American made vinyl. Ohenry Frame tents are kept in stock! Heavy duty commercial Frame tents which are designed for tent rentals.

30x40 Ohenry Frame tent

Ohenry has 30x40 frame type tents for sale which are ideal for use as party tents, wedding tents, and other industrial tent and commercial tent uses.

Frame tents were originally conceived as a design which eliminates the center pole or poles of a traditional pole tent. This is the main reason for this type tent.

Ohenry Frame tents are heavy duty tents designed for the party tent rental industry. Ohenry frame tents are built with first quality materials. An Ohenry frame tent is your best choice!

Call today to buy your new frame tent!

  • Picture
  • Description
  • What's Included
  • Pole Tent Vs. Frame Tent
  • Instructions and Drawings
  • Compare Ohenry Quality
  • Warranty & Policies
  • Buy Now!

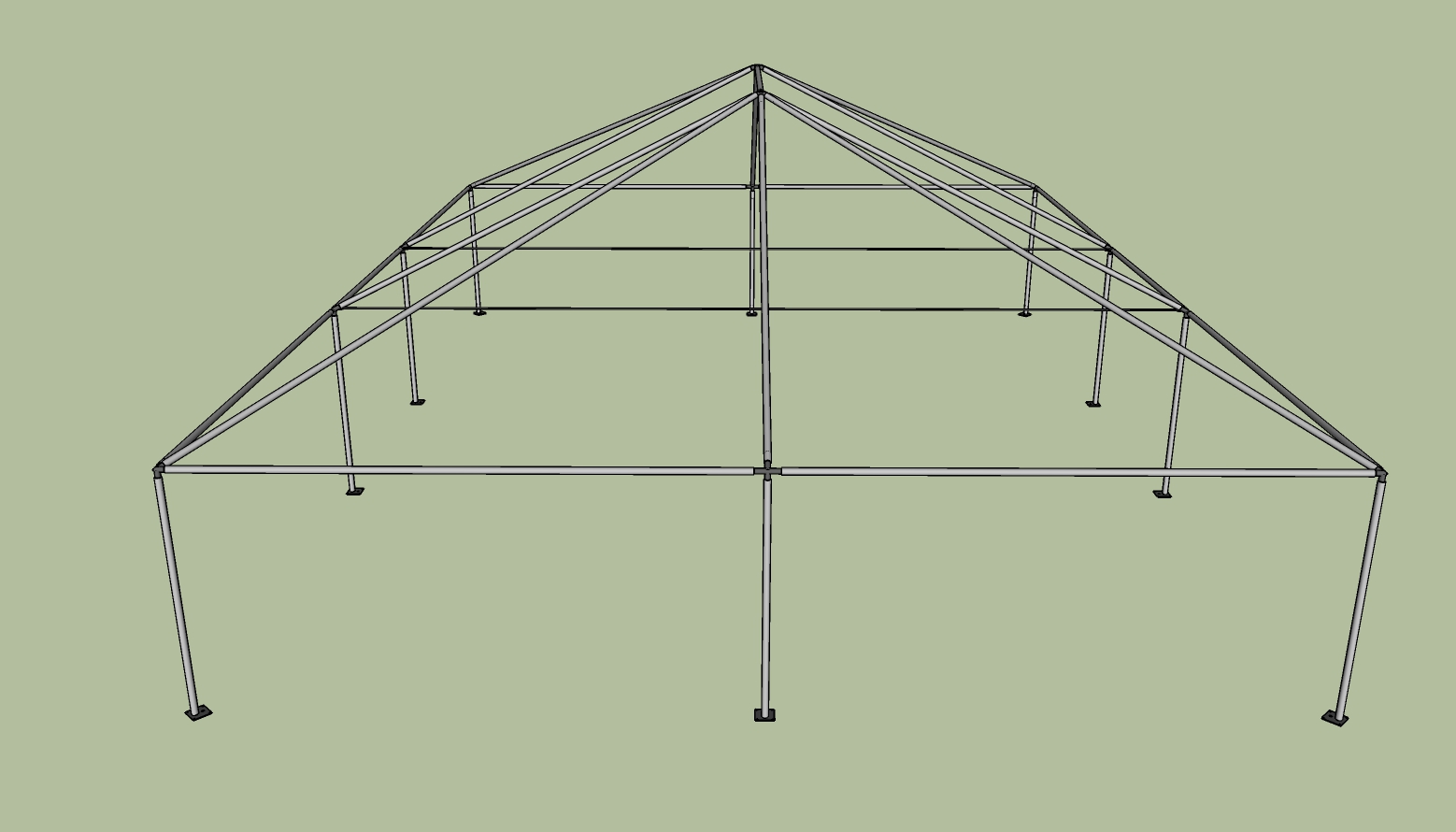

Ohenry 30'x40' Frame Tent

Frame tents were originally conceived as a design which eliminates the center pole or poles of a traditional pole tent. This is the main reason for this type tent. Ohenry Frame tents are heavy duty tents designed for the party tent rental industry. Ohenry frame tents are built with first quality materials. All Ohenry products comply with the California Fire Marshall's Office flame resistance requirements.
Top & hardware kit (no walls).

Kit includes:

Frame top (cover) & all aluminum Hardware ( no side walls ) -- View itemized list and drawing

Frame Tent Brochure ---



Shipping weight = 779 LBS (excluding walls)



See the superior Ohenry manufacturing process:



Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player


Which is best, a frame tent or a pole tent?

If you are considering purchasing a frame tent, there are a few things we would like to make you aware of so you can wisely choose between a frame tent and a pole tent.

  1. Frame tents are normally more expensive than pole tents.
  2. A pole tent is much more portable than a frame tent.
  3. Pole tents are much easier to install than a frame tent.
  4. Typical installation time for a 20x30 frame tent = 4- men 1.5 hours
  5. Typical installation time for a 20x30 pole tent = 2-men 20 minutes
  6. Typical installation time for a 40x80 frame tent = 10 men 6-7 hours
  7. Typical installation time for a 40x80 pole tent = 2 men 1.5 hours
  8. Frame tents are NOT "Free Standing" as sometimes advertised.  They must be staked out just like a pole or tension structure must be. The only exception is for indoor use.
  9. Pole tents will withstand higher wind loads than a frame tent.
  10. The hardware on a frame tent is very specialized, including pieces which are either cast aluminum, or welded steel. If you lose or damage one of these pieces, your frame tent is useless until you can find a replacement part from the manufacturer.
  11. The hardware on a pole tent (poles & stakes) is made of  items which in a pinch you can find suitable replacement materials at any building material supply company.  Rebar can be substituted for stakes, and a 2"x 4" with a large nail inserted in one end can substitute for a side pole.
  12. Finally, the hardware on a frame tent is SIZE SPECIFIC.  In other words, if you own a frame 20x20 and a 30x30, the parts do not interchange.  You can imagine how frustrating all this can be when you are dealing with an expensive frame tent!
  13. Frame tents do have some advantages for certain situations which do not allow complete staking.

Installation Manual

Seating drawing for Auditorium

Seating drawing for Tables and chairs



Approved vendor to the U.S. Army, Air Force & FEMA!
  • Ohenry tents are built for commercial, and industrial use. We build all our tents to endure multiple set ups and takedowns. Ohenry tents are specifically designed to endure the daily abuse of a rental environment. For 25 years we had a tent rental division, and we know first hand the abuse a rental tent can be subjected to.
  • All Ohenry tents are constructed with 100% American made products when possible. We refuse to use inferior and less expensive tent material, rope, webbings or hardware. A tent using inferior components will cost 60% less to manufacture, but simply will not last.
  • Please examine closely the perimeter "edge work" as well as the lace lines, corner fittings, center pole fittings and side pole fittings of any tent you are contemplating for purchase, regardless of the manufacturer. These are the areas where shortcuts are made to reduce cost of manufacturing. However, these are the most critical areas of tent construction, and any shortcuts made here will simply guarantee that the tent will not last as it should!
  • When you buy an Ohenry tent, you know the fabric is first run (no seconds) quality material. Our side walls are also constructed of 13 - 14 oz material. We do not use the inferior 10 oz material common to many manufacturers.
Important specifications
Ohenry
Other manufacturers
  • Weight of tent top material
  • Weight of side wall material
  • Size of "guy out" ropes
  • Type of webbing used
  • Reinforcing at stress points
  • Webbing on entire perimeter
  • Width of welded seams
  • Distance between Side poles
  • Size of  ratchet system
  • 14 -15 oz  standard
  • 13 - 14 oz  standard
  • 1/2" - 5/8"
  • 1.5"-2"  3,000 lb - 6,000 lb test
  • Double & triple thickness
  • 2" seatbelt type
  • 2" first seam, and re-welded with 2.5" strip
  • 30' Wide tents & larger every 5' standard
  • 2" long handle  12,000 lb test
    • 10- 13 oz  standard
    • 8 - 10 oz
    • 1/2" all sizes
    • 1" to1.5" 800 lb test
    • single - double thickness
    • 1" light duty
    • 1/2" - 1" single weld
    • 7.5 '- 10' apart
    • 1.5" short handle 800 lb

    10'x10' --- 20'x40' pole tents
    • Tops constructed of solid white Block-out  13 oz or with a 14 oz translucent color combination ( vertical stripes )
    30' wide...to 70' wide pole tents
    • Tops constructed of solid white Block-out  15 oz.
    • Tops constructed of Block-out white 15 oz with a 14 oz translucent color combination ( vertical stripes )
    80' & 100' wide pole tents
    • Tops constructed of solid white Block-out  15 oz.
    • Tops constructed of Block-out white 15 oz with a 14 oz translucent color combination ( vertical stripes )
    20'x20' - 20'x40' High Peaks
    • Tops constructed of solid white Block-out  15 oz
    • Tops constructed of Block-out white 15 oz with a 14 oz translucent color horizontal stripe
    30'x30' & 30'x50' 1pc - High Peaks
    • Tops constructed of solid white Block-out  15 oz
    • Tops constructed of Block-out white 15 oz with a 14 oz translucent color horizontal  stripe
    30' & 40' wide sectional High Peaks
    • Tops constructed of solid white Block-out  15 oz
    • Tops constructed of Block-out white 15 oz with a 14 oz translucent color combination ( vertical stripes )
    60' wide twin pole High Peaks
    • Tops constructed of solid white Block-out  15 oz.
    • Tops constructed of Block-out white 15 oz with a 14 oz translucent color combination ( vertical stripes )
    Frame tents
    • Tops constructed of solid white Block-out  17 oz.
    • Tops constructed of Block-out white 17 oz with a 14 oz translucent color combination ( vertical stripes )
    Side Walls   *** Standard tent walls are constructed of    Block-out white, translucent white, & colors 13 - 14 oz



    Warranty & Policies



    Click on these other Sizes of Ohenry Frame Tents for more info:

    Why Ohenry? Video

    Frame Tent Installation Video

     Side Wall Installation Video

    Ohenry party tents are built with  top quality first run materials,  made right here in the good old U.S.A. Standard pole tent sizes are from 10' x 10' to 100' x 200'.  If you need a frame tent or pole tent that will stand the test of time, you will be glad when you invest in an Ohenry party tent.

    Save big bucks on a party tent starter package!

    Buy a starter package of party tents from Ohenry, and get started renting tents today!

    If you are in the party rental or party frame tent rental business, you will find Ohenry is your best choice for a heavy duty frame tent which is designed specifically for the tent rental and party rental industry.  Ohenry frame tents are built to last many years, and best of all, our frame tents are in stock waiting for you.  You will never have to wait for your tent. We have all sizes of pole tents, frame tents, and high peak tents in stock, ready to go to work as party tents for you!
